10-Pair Quick Connect System 2810

Short Description:


  • Model: DW-2810
  • Product Detail

    Product Tags

    Product Video

    ia_20500000032

    Description

    Insulation Resistance >1x10^10 Ω Contact Resistance < 10 mΩ
    Dielectric Strength 3000V rms,60Hz AC High Voltage Surge 3000 V DC Surge
    Operating Temperature Range -20°C to 60°C Storage Temperature Range -40°C to 90°C
    Body Material Thermoplastic Contact Material Bronze

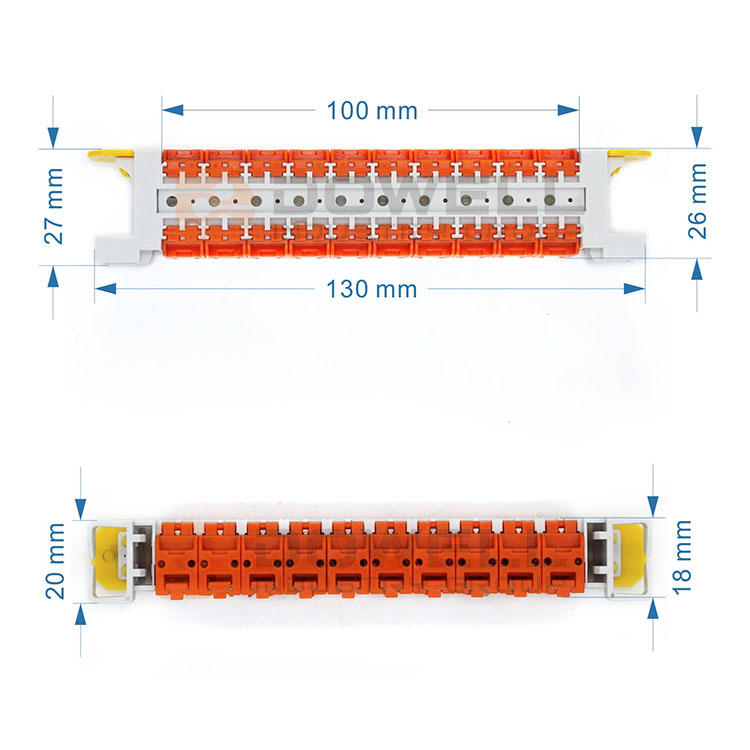

    Size 135x26x20 mm Weight 0.043 kg

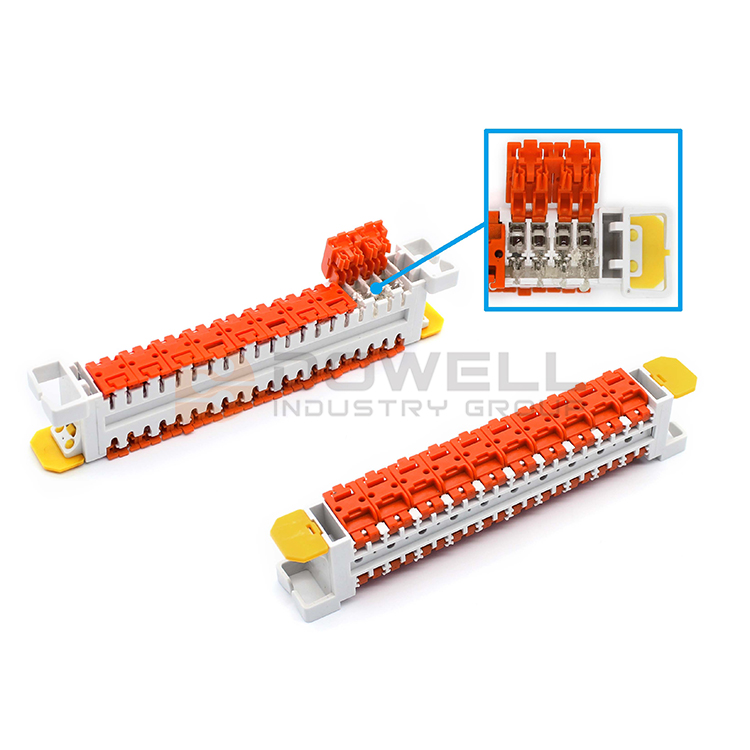

    Quick Connect System(QCS) 2810 is an insulation displacement connector (IDC) termination system. The QCS 2810 system is a simpleto-use, tool-less copper block; an ideal solution for outside plant applications. Whether in crossconnect cabinets or at the edgeof the network, the gel-filled 2810 system is the solution.

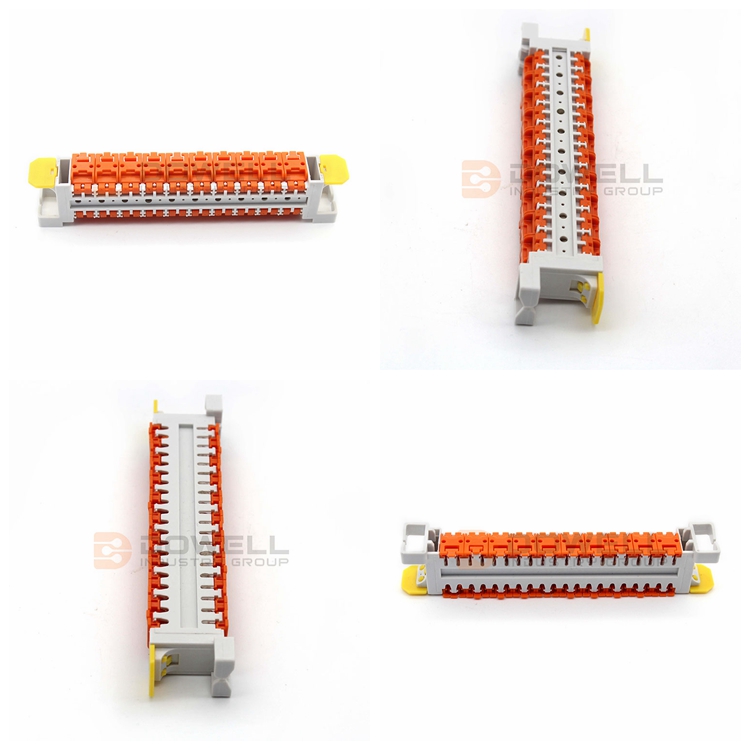

    pictures

    ia_22500000039(1)
    ia_22500000040(1)
    ia_22500000041(1)

    Applications

    The Quick Connect System 2810 can be used throughout the networkas the common interconnectivity and termination platform. Designed specifically for rugged use and robust performance in the outside plant,the QCS 2810 system is ideal for use in pole wall mount cable terminals,distribution pedestals, strand or drop wire terminals, cross-connect cabinets and remote terminals.

    ia_22500000043(1)
