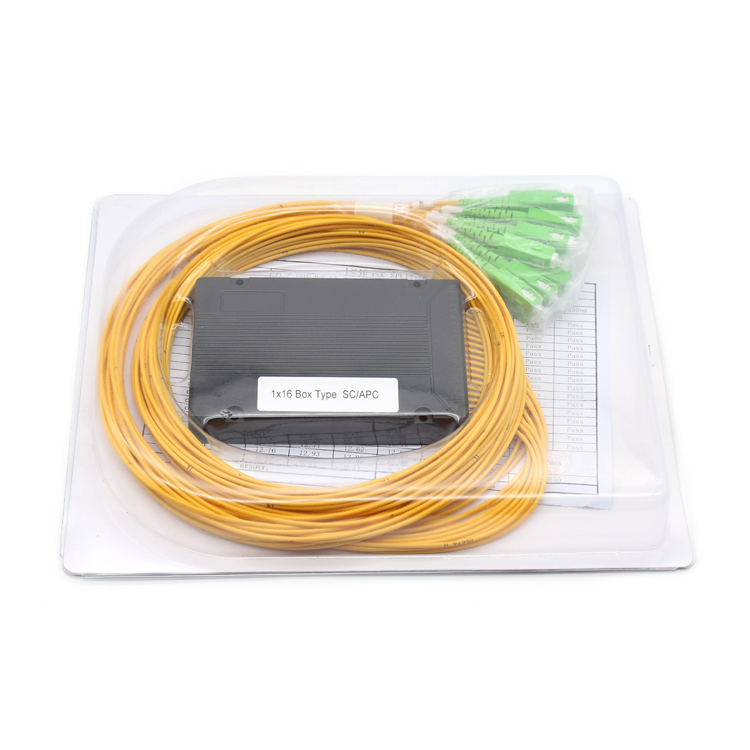

Optical FTTH 1×16 Box PLC Splitter For Distribution Cabinet

Box Type PLC splitter Supplier from China,professional offer for connect main equipment and terminal equipment in EPON, BPON and GPON network.

All-optical Structure.High-reliability.Low PDL, Low Insertion Loss, High Return Loss,Good stability and reliability ,Flexible packaging

customized ratios are available

customized connectors are available

Model: DW-B1X16

Product Detail

1×N (N≥2) PLC Splitter (with Connector) Optical Parameter

Parameter		1x2	1x4	1x8	1x16	1x32	1x64
Wavelength (nm)		1260 ～ 1650
IL (dB)		≤4.1	≤7.4	≤10.5	≤13.8	≤17.1	≤20.4
Uniformity (dB)		≤0.6	≤0.7	≤0.8	≤1.0	≤1.5	≤2.0
RL (dB)		≥50 (PC), ≥55 (APC)
PDL (dB)		≤0.15	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3
Directivity (dB)		≥55	≥55	≥55	≥55	≥55	≥55
Environment	Operating Temp. (℃)	-40~85℃
	Storage Temp. (℃)	-40~85℃
	Humidity	≤95% (+40℃)
	Atmospheric Pressure	62~106kPa
Fiber		SM G657A or customized
Connector		SC, FC, LC
Tube Color		Yellow, blue, red or customized
Boot Color		Blue, black or customized
Pigtail (m)		1.0, 1.5, 2.0 or customized

Remark: Test in room temperature and include connector.

2×N (N≥2) PLC Splitter (with Connector) Optical Parameter

Parameter		2x2	2x4	2x8	2x16	2x32	2x64
Wavelength (nm)		1260 ～ 1650
IL (dB)		≤4.4	≤7.7	≤10.8	≤14.1	≤17.4	≤20.7
Uniformity (dB)		≤0.6	≤0.7	≤0.8	≤1.2	≤1.5	≤2.0
RL (dB)		≥50 (PC), ≥55 (APC)
PDL (dB)		≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4
Directivity (dB)		≥55	≥55	≥55	≥55	≥55	≥55
Environment	Operating Temp. (℃)	-40~85℃
	Storage Temp. (℃)	-40~85℃
	Humidity	≤95% (+40℃)
	Atmospheric Pressure	62~106kPa
Fiber		SM G657A or customized
Connector		SC, FC, LC
Tube Color		Yellow, blue, red or customized
Boot Color		Blue, black or customized
Pigtail (m)		1.0, 1.5, 2.0 or customized
