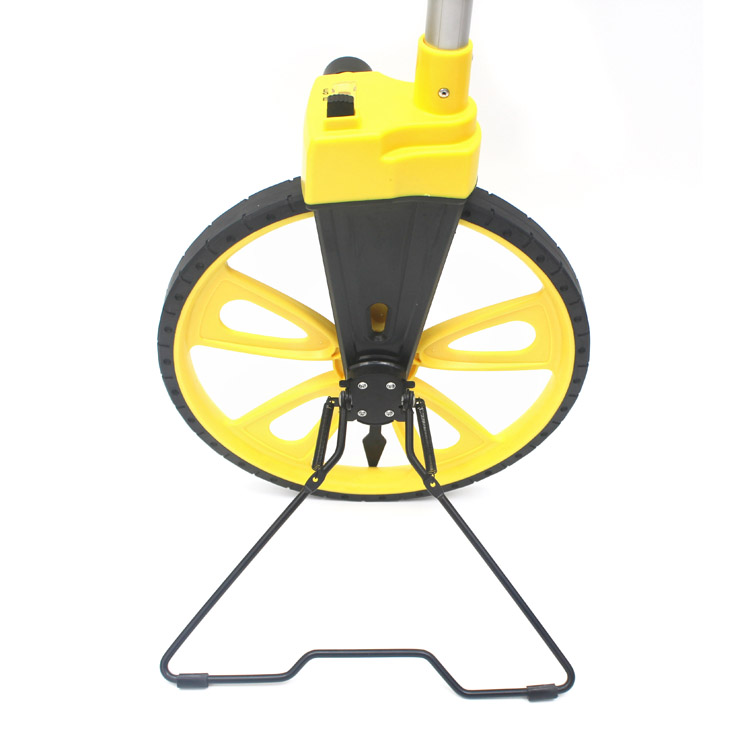

Distance Measuring Wheel

Short Description:

● Precise & Lightweight.
● Easy to carry & storage
● Balance centerline design
● Sturdy folded handle and pistol grip
● Dual reset and protection on reset key
● Hi-shockproof ABS tire


  • Model: DW-MW-01
  • Product Detail

    Product Tags

    • Maximum measuring distance 9999.9m
    • Diameter of wheel 320mm(12in)
    • Radius 160mm (6 in)
    • Extended size 1010mm(39in)
    • Storage size 530mm(21in)
    • Weight 1700g

    01 510605  07 09

    ● Wall to Wall Measurment

    Place measuring wheel on the ground, with the back of your wheel up against the wall.Proceed to move in a straight line to the next wall,Stop the wheel up againet the wall.Record the reading on the counter.The reading must now be added to diameter of the wheel.

    ● Wall To Point Meassurment

    Place measuring wheel on the ground,with the back of your wheel uo against the wall,Proceed to the move in a straight line trhe end point,Stop the wheel with the lowest point over the make.Record the reading on the counter,The reading must now be added to the Readius of the wheel.

    ● Point to Point Measurment

    Place measuring wheel on the starting point of the measurment with lowest point of the wheel on the mark.Proceed to the next mark at the end of the measurement.Recording the reading one the counter.This is the final measurement between the two points.
