FTTP, CATV System Duplex SC/PC to SC/PC OM4 MM Fiber Optic Patch Cord

Short Description:

● Using high precision ceramic ferrule
● Low insertion loss and high return loss
● Excellent stability and high repetition
● 100% Optic test (Insertion Loss & Return Loss)

Model: DW-SPD-SPD-M4

Send email to us

Product Detail

Product Tags

Product Video

Products Description

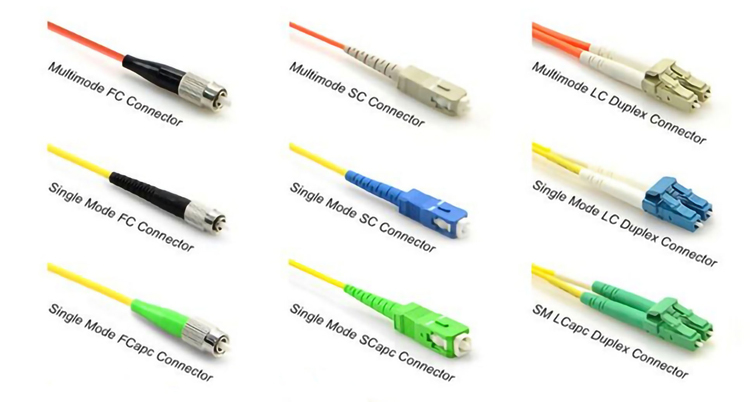

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJ MPO MTP etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Parameter	Unit	Mode Type	PC	UPC	APC
Insertion Loss	dB	SM	<0.3	<0.3	<0.3
Insertion Loss	dB	MM	<0.3	<0.3
Return Loss	dB	SM	>50	>50	>60
Return Loss	dB	MM	>35	>35
Repeatability	dB	Additional loss< 0.1, return loss< 5
Interchangeability	dB	Additional loss< 0.1, return loss< 5
Connection Times	times	>1000
Operating Temperature	°C	-40 ~ +75
Storage Temperature	°C	-40 ~ +85

Test Item	Test Condition and Test Result
Wet-resistance	Condition: under temperature:85°C, relative humidity 85% for 14days.Result: insertion losss0.1dB
Temperature Change	Condition: under temperature -40°C~+75°C, relative humidity 10 % -80 % , 42 times repetition for 14days.Result: insertion losss0.1dB
Put in Water	Condition: under temperature 43C, PH5.5 for 7daysResult: insertion losss0.1dB
Vibrancy	Condition: Swing1.52mm, frequency 10Hz~55Hz, X, Y, Z three directions:2 hoursResult: insertion losss0.1dB
Load Bend	Condition: 0.454kg load, 100 circlesResult: insertion losss0.1dB
Load Torsion	Condition: 0.454kgload, 10 circlesResult: insertion loss s0.1dB
Tensibility	Condition: 0.23kg pull (bare fiber), 1.0kg (with shell)Result: insertions0.1dB
Strike	Condition: High 1.8m, three directions ,8 in each directionResult: insertion losss0.1dB
Reference Standard	BELLCORE TA-NWT-001209, IEC, GR-326-CORE standard

Application

Patch cables are used for connections to CATV (Cable Television)
Telecommunication networks,
Computer fiber networks and fiber test equipment.
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber optic communication system
Optical fiber connected and transmitted equipment
Defense combat readiness, etc.
