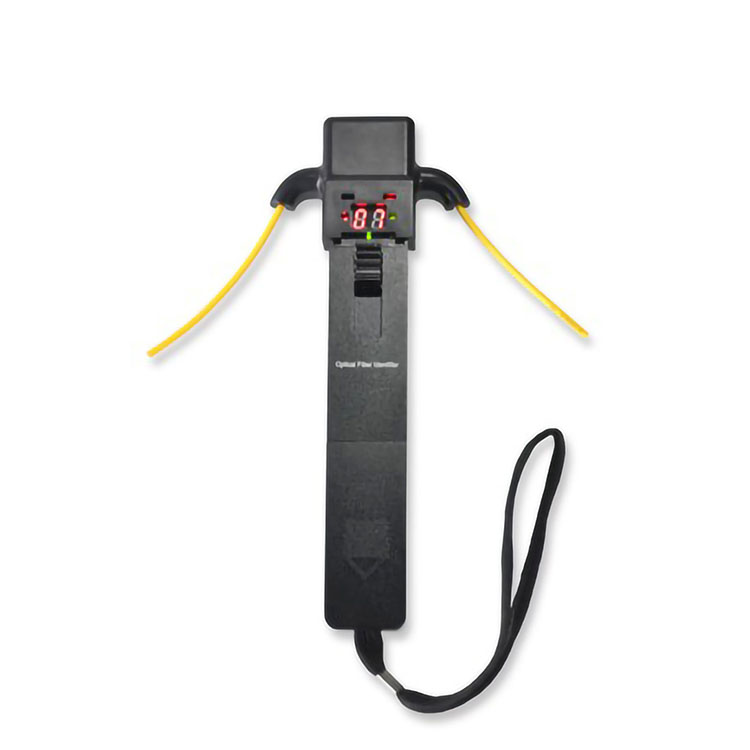

Multi-in-One Fixture Integrated VFL FTTH Optical Fiber Identifier Fiber Detector Cable Tester
This optical fiber identifier also recognizes the modulation like 270Hz, 1kHz and 2kHz. When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. This optical fiber identifier is powered by a 9V alkaline battery.
Three Items offered: DW-OFI / DW-OFI2/DW-OFI3
| Identified Wavelength Range | 800-1700 nm | |
| Identified Signal Type | CW, 270Hz±5%，1kHz±5%，2kHz±5% | |
| Detector Type | Ø1mm InGaAs 2pcs | |
| Adapter Type | Ø0.25 (Applicable for Bare Fiber)，Ø0.9 (Applicable for Ø0.9 Cable ) | |
| Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable ) | ||
| Signal Direction | Left & Right LED | |
| Singe Direction Test Range(dBm, CW/0.9mm bare fiber) | -46~10(1310nm) | |
| -50~10(1550nm) | ||
| Signal Power Test Range(dBm, CW/0.9mm bare fiber) | -50~+10 | |
| Signal Frequency Display (Hz) | 270, 1k, 2k | |
| Frequency Test Range(dBm, Average Value) | Ø0.9, Ø2.0, Ø3.0 | -30~0 (270Hz,1KHz) |
| -25~0 (2KHz) | ||
| Ø0.25 | -25~0 (270Hz,1KHz) | |
| -20~0 (2KHz) | ||
| Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
| 2.5 (1550nm) | ||
| Alkaline Battery(V) | 9 | |
| Operating Temperature(℃) | -10－+60 | |
| Storage Temperature(℃) | -25－+70 | |
| Dimension (mm) | 196x30.5x27 | |
| Weight (g) | 200 | |
